In this instruction I will be demonstrating how to connect the virtual network running on GNS3 server the local hardware.
This configuration allows access to virtual switches from the user's local network.
Go to the GNS3 interface (web or client) and open created previously lab.
In the topology, create a new connection with the Cloud interface.

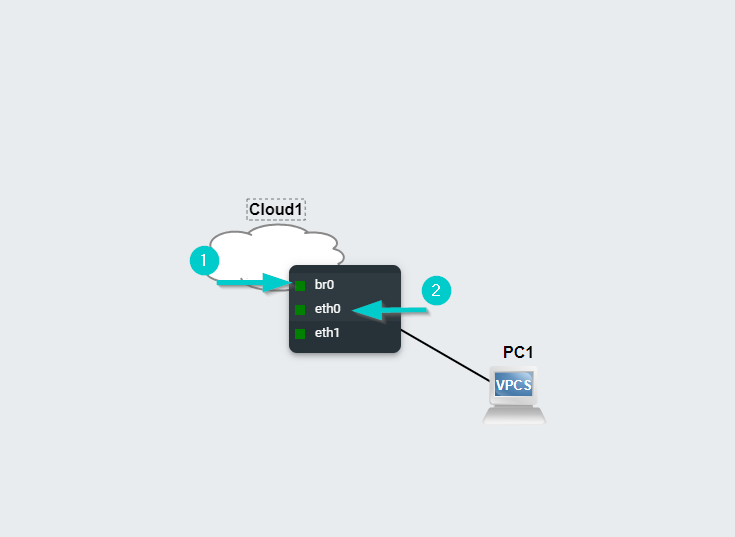

In the next step, create a connection to the device from the topology with the Cloud by selecting the appropriate interface.
- br0 - select in case of full speed link configuration for Cloud
How do I set the full connection speed for the cloud in GNS3 running on Proxmox ?
How do I set the full connection speed for the cloud in GNS3 running on VMware ESXi ? - eth0 - default interface for Cloud configuration (usually limited transfer)
Congratulations!
You have successfully set up a connection to the local network in GNS3.
Happy fun with GNS3 !!! 😉
