How to set up GNS3 server on VirtualBox?


Imagine having the power to create, experiment, and test the SONiC networks without needing any physical equipment or worrying about mistakes πŸ€” That's where GNS3 comes in – your gateway to the thrilling realm of virtual networking. In this article, we'll walk you through the fundamentals of GNS3 using a unique setup: a pre-configured virtual machine with GNS3 all set up and ready to go. This means you can jump right into networking without the hassle of dealing with complex installations πŸš€πŸ˜‰

Optimal Hardware Requirements

Ensure that your system meets the following requirements for an optimal GNS3 experience, especially if you plan to work with complex network setups and simulations.

  • Processor: You'll need a powerful processor for the best experience. We recommend an Intel Core i7 or i9 CPU, an AMD Ryzen 7 (R7) or Ryzen 9 (R9) CPU, or any CPU with 8 or more logical cores. Make sure your CPU supports virtualization technologies like AMD-V (RVI Series) or Intel VT-X (EPT).

  • RAM: To run GNS3 smoothly, you should have at least 32 GB of RAM. More RAM can further enhance performance, especially when dealing with complex network simulations.

  • Free Hard Disk Space: GNS3 operates best with a solid-state drive (SSD) that offers at least 80 GB of available space. SSDs provide faster data access and improve overall performance.

  • Graphics Card: While not a top priority for GNS3, a graphics card with dedicated VRAM and support for OpenGL 3.0 or newer is recommended. This helps with graphical rendering and user interface responsiveness.

  • Internet Connection: A fast and stable internet connection is essential if you plan to download additional device images or use cloud-based resources within GNS3.

  • Operating System: GNS3 is compatible with various operating systems. You can run it on Windows 10, macOS 11 or newer, or supported Linux distributions. Ubuntu 20.04 or later is a recommended choice, but it can also work within other virtualization environments.

  • Additional Considerations: Keep in mind that running virtual devices can be demanding on your processor and memory. While meeting the minimum requirements is essential, a well-configured network device often matters more than having the most powerful hardware.

Step 1: Download the Pre-Built GNS3 Virtual Machine

Before we dive into setting up GNS3, let's start by downloading the GNS3 Virtual Machine (VM). This VM comes pre-configured with GNS3, making the setup process much smoother.

You have two download options for the GNS3 VM. In this step, we'll explain both choices, so you can pick the one that fits your needs perfectly.

Option 1: Download via GNS3 Website (Recommended)

  1. Go to
  2. On the download page, select the Virtualbox option.

Dowload GNS.png

Option 2: Download from GitHub (Alternative)

  1. Visit the GNS3 release page on GitHub at
  2. On the release page, you have the option to download the GNS3 application, various versions of the GNS3 VM, and even access the source code.

Dowload GNS_github.png

Once you've downloaded the GNS3 VM, you'll get a .zip archive. It's crucial to unzip or extract its contents before proceeding to import it into your VirtualBox.

Step 2: Import the Virtual Machine into VirtualBox

  1. Launch VirtualBox on your computer.
  2. In VirtualBox, navigate to the File menu and select Import Appliance.

    import vm.png

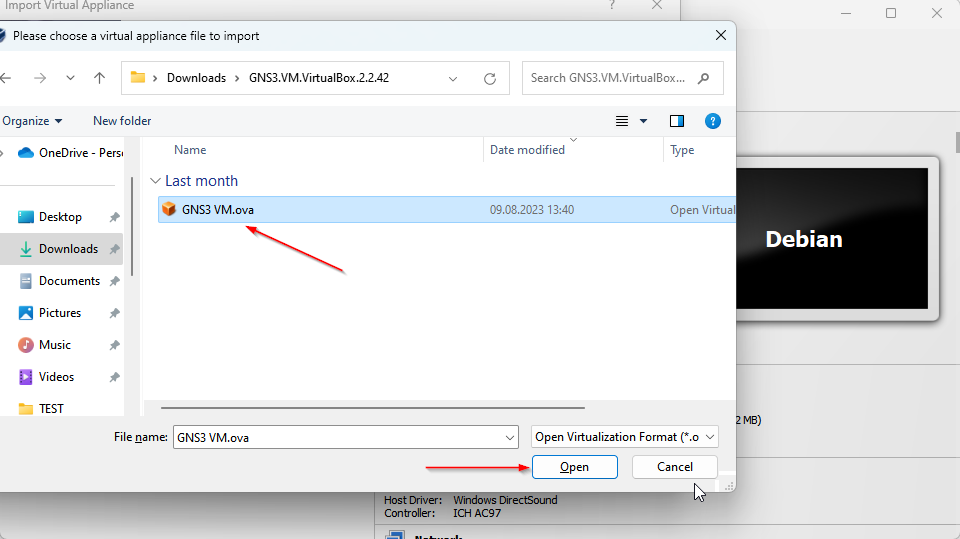

  3. In the dialog box that appears, specify the path to the downloaded virtual machine file (the GNS3 VM that you previously downloaded and extracted). After selecting the file, click Open to proceed with the import process.


Step 3: Configure the Virtual Machine Parameters

Once you've imported the GNS3 VM, it's crucial to configure its parameters to guarantee optimal performance for your network simulations.

    1. In the VirtualBox Manager, select the imported GNS3 VM from the list on the left-hand side.

    2. Click on the Settings button in the VirtualBox toolbar to access the virtual machine's settings.

    3. In the settings window, make sure to allocate the recommended amount of RAM and CPU cores according to the optimal hardware requirements stated in the introduction.
      • Navigate to the System category and then in the Motherboard tab to allocate the recommended amount of RAM.

        change specs.png
      • Navigate to the System category and then in the Processor tab to allocate the recommended amount of CPU cores.

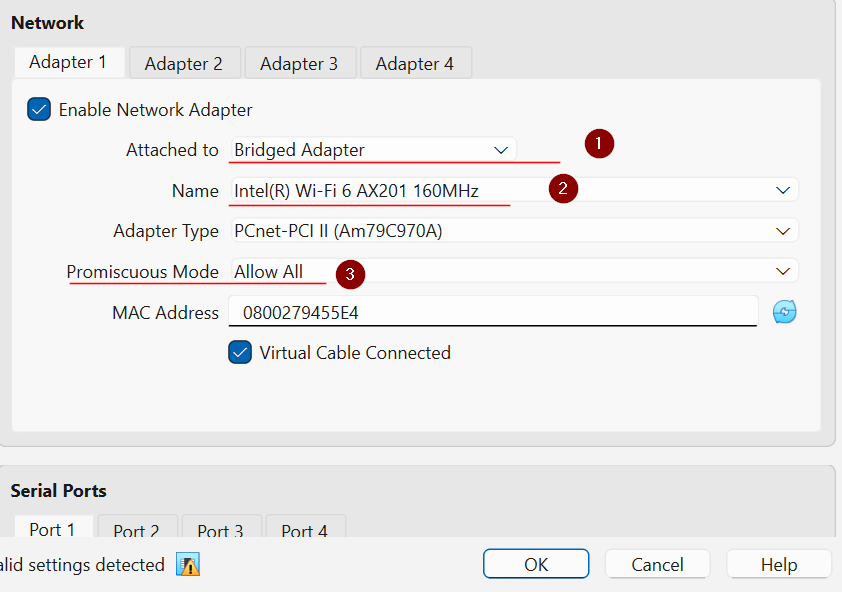

    4. In the settings window, navigate to the Network category on the left-hand side. Under the Adapter 1 tab, ensure that Enable Network Adapter is checked. In the Attached to dropdown menu, select the Bridged Adapter and then you may need to specify the network interface to bridge to. Use the dropdown menu next to Name to choose the appropriate network interface if it's not already selected. Once you've configured the network settings to your preference, click OK to save the changes.



The network adapter can work in one of three modes:

  • NAT (Network Address Translation): This mode allows the virtual machine to share the host computer's IP address for internet access. It's suitable for general internet access and basic network simulations.

  • Bridged Adapter: Choose this mode to enable the virtual machine to function as a separate device on your physical network, as if it were another physical computer. This is useful for more advanced network configurations and scenarios.

  • Internal Network: Use this mode if you want to create a private network that's isolated from your host machine and other external networks. Virtual machines connected to the same internal network can communicate with each other.

Step 4: Starting the GNS3 VM on VirtualBox

  1. In VirtualBox, locate the GNS3 VM in the left sidebar of the VirtualBox Manager interface. It should be listed with the name you provided during the import process. Select the GNS3 VM to highlight it, then click the Start button (a green arrow icon) in the VirtualBox toolbar, or simply right-click on the VM and choose Start.

  2. VirtualBox will initiate the boot process for the GNS3 VM. You will see a console window showing the VM's boot progress.

  3. Once the GNS3 VM is fully booted and ready, you'll see information on how to access the GNS3 graphical user interface (GUI). Typically, this information includes an IP address or hostname that you can use in your web browser. Make a note of this access information, as you'll need it to log in to the GNS3 GUI in the next steps.

  4. Launch your browser and open the specified IP address. This will take you to the GNS3 interface where you can manage your network simulations.

    new project.png


Well done! With GNS3 up and running on VirtualBox and SONiC at your fingertips, you're fully equipped for thrilling network simulations and valuable learning experiences. Dive into the world of virtual networking with GNS3 and SONiC and enjoy the exciting possibilities ahead! Happy networking! πŸ˜„πŸŒπŸš€
