How to configure VLANs in SONiC?

STORDIS_Mikołaj Walczak

Updated October 01, 2026 06:34

Introduction
Prerequisites
Configure VLANs
Troubleshooting
Useful links

Introduction

VLANs allow segmentation of Layer 2 broadcast domains. In this article, we configure two VLANs (10 and 55) across two switches connected via a trunk link.

Prerequisites

Before starting the configuration, ensure you have the following:

Installed SONiC on both switches.
Console/SSH access to both switches S1 and S2.
Console terminal software: PuTTY, Teraterm, SecureCRT, etc.
Serial Console cable: Provided with the device.
Basic Linux CLI knowledge.

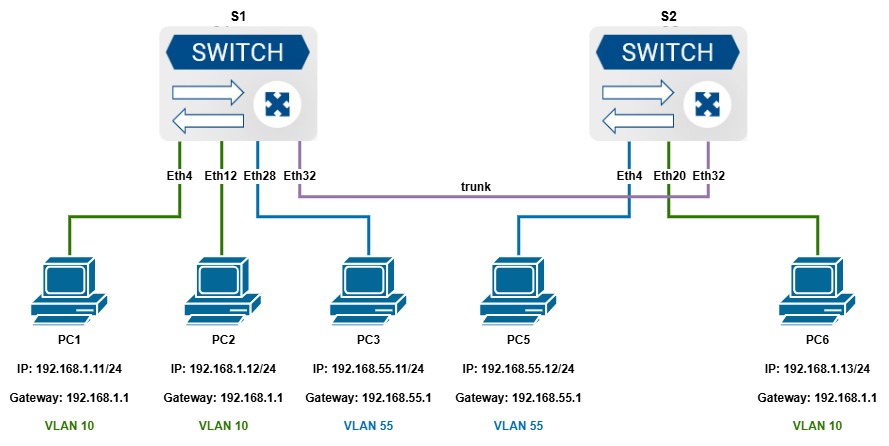

Topology

Configure VLANs

Note

By default, all Ethernet interfaces have IP addresses assigned. Remove these addresses and keep IP configuration only on the docker0 and Loopback interfaces.

This can be done manually using CLI commands or by using an automation script.

STEP 1: Create VLANs

On both switches:

sudo config vlan add -m 10,55

The "-m" option allow you to add multiple VLANs separated by comma.

STEP 2: Assign Access Ports

Switch S1:

sudo config vlan member add -u 10 Ethernet4
sudo config vlan member add -u 10 Ethernet12
sudo config vlan member add -u 55 Ethernet28

The "-u" option specifies untagged (access) port.

STEP 3: Configure Trunk Ports

On both switches:

sudo config vlan member add -m 10,55 Ethernet32

Without "-u" option, ports are tagged.

Switch S2:

sudo config vlan member add -u 55 Ethernet4
sudo config vlan member add -u 10 Ethernet20
sudo config vlan member add -m 10,55 Ethernet32

STEP 4: Save configuration

sudo config save -y

STEP 5: Configure static IP addresses on all PCs (according to Topology above)

STEP 6: Verification

Check VLAN table:

show vlan brief

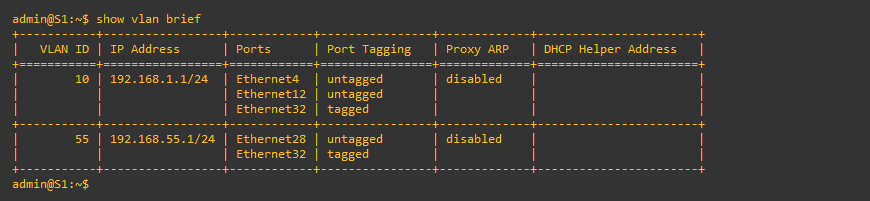

Switch S1:

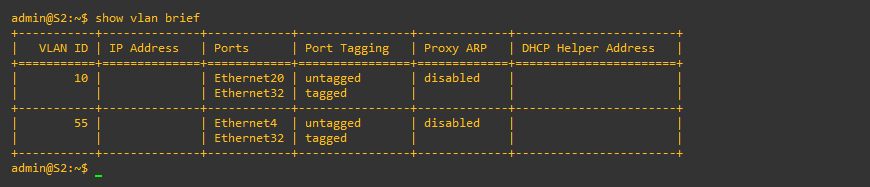

Switch S2:

STEP 7: Test connectivity

Ping between PCs in VLAN 10 → should succeed.
Ping between PCs in VLAN 55 → should succeed.
Ping between PCs in VLAN 10 and 55 → should fail.

Troubleshooting

If connectivity fails:

show interfaces status
show vlan brief
Verify trunk configuration
Check IP addresses

Congratulations!

You have successfully configured VLANs on both SONiC switches and verified Layer 2 connectivity across a trunk link based on IEEE 802.1Q.

If you have any questions related to this article, feel free to reach out to our technical support team.

Happy Networking!
